64221-2502130
| Designation | 64221-2502130 |

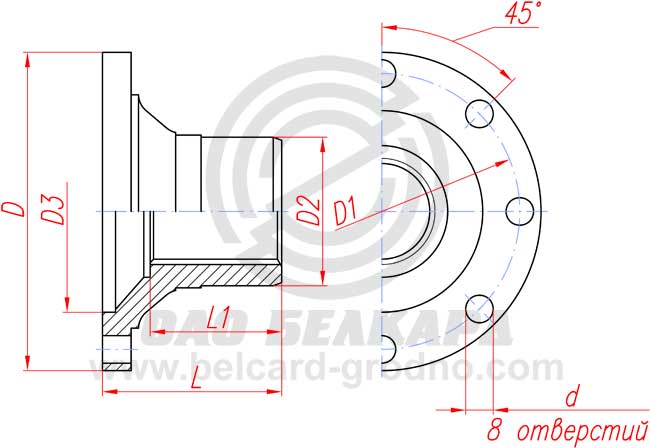

| Execution | Scheme 3 |
|
D Flange Rim diameter
| 230 , mm |
|
D1 Hole arrangement diameter
| 205 , mm |
|
D2 Outer diameter of the cylindrical part
| 85 , mm. |
|
D3 Diameter of the centering groove
| 223 , mm |
|
d Hole diameter
| 14 , mm |
|
L Part length
| 90 , mm |
|
L1 Slot length
| 68 , mm |
| Slot type | Straight-forward |
|
z x dh x Dh x h (z x m) z -number of slots dh - inner diameter slot Dh - outer diameter slot h - width of the cavity m - module
| 16x52x60x5 , mm. |
|
M Flange weight
| 2.65 , kg |
