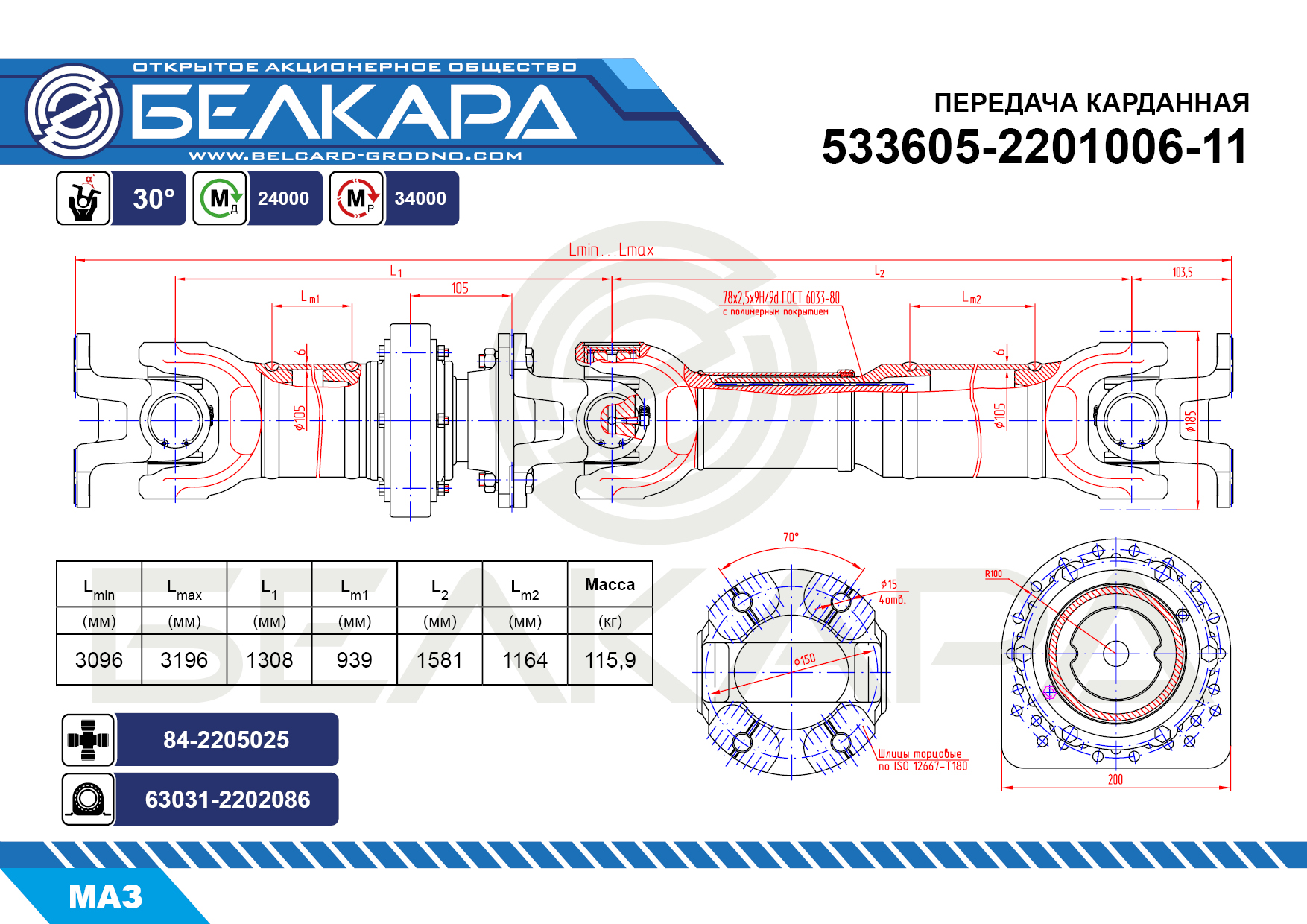

533605-2201006-011
| Designation | 533605-2201006-011 |
|
Md Torque without residual deformation
| 24000 , N*m |
|
Mr Non-destructive torque
| 34000 , N*m |
|
d x S d is the inner diameter of the pipe S is the wall thickness of the pipe
| 105x6 , mm. |
|
D Diameter of the circle described by the hinge elements
| 185 , mm |
|
a1 The angle of rotation in the hinge
| 30 , hail. |
|
a2 Angle of rotation in the hinge
| 30 , hail. |
|
Lmin Transmission length in fully compressed position
| 3096 , mm |
|
Move Slotted stroke
| 100 , mm. |
| L1 | 1308 , mm |
| L2 | 1581 , mm |
|
M Transfer weight
| 115,9 , kg |
