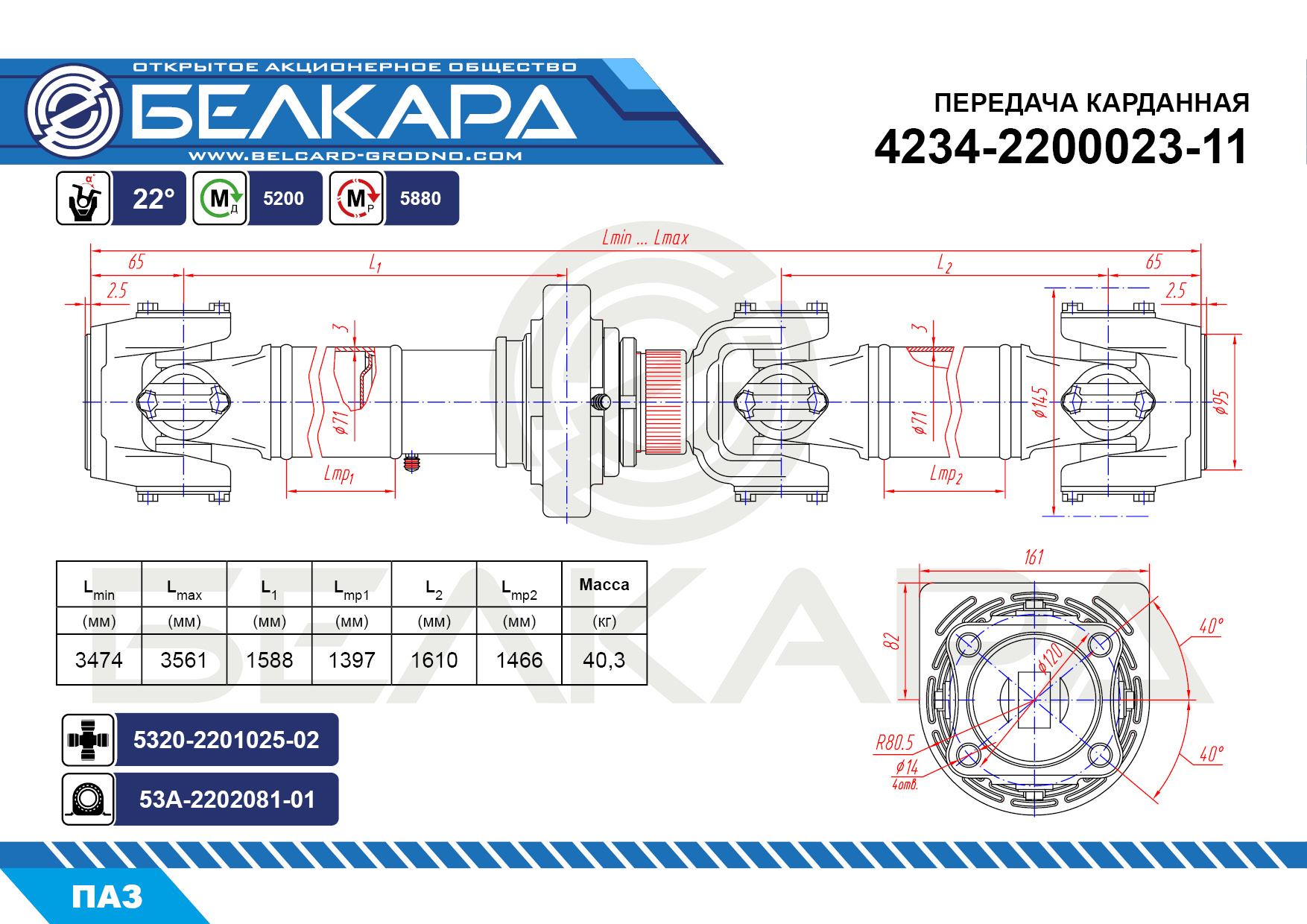

4234-2200023-11
| Designation | 4234-2200023-11 |
|
Md Torque without residual deformation
| 5200 , N*m |
|
Mr Non-destructive torque
| 5880 , N*m |
|
d x S d is the inner diameter of the pipe S is the wall thickness of the pipe
| 71х3 , mm. |
|
D Diameter of the circle described by the hinge elements
| 145 , mm |
|
a1 The angle of rotation in the hinge
| 22 , hail. |
|
a2 Angle of rotation in the hinge
| 22 , hail. |
|
Lmin Transmission length in fully compressed position
| 3474 , mm |
|
Move Slotted stroke
| 87 , mm. |
| L1 | 1588 , mm |
| L2 | 1610 , mm |
|
M Transfer weight
| 40,3 , kg |
