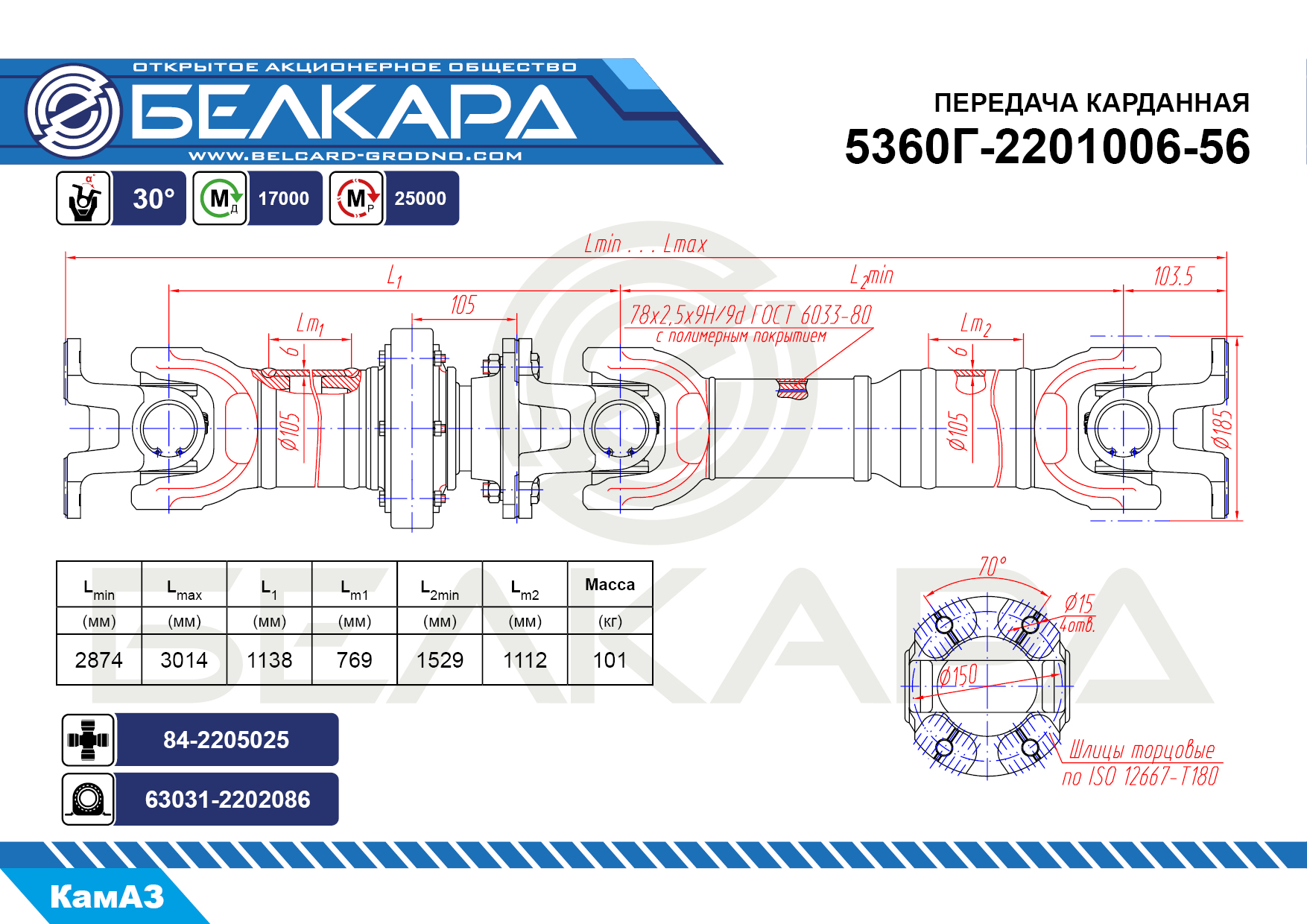

Designation	5360Г-2201006-56
Md Torque without residual deformation	17000 , N*m
Mr Non-destructive torque	25000 , N*m
d x S d is the inner diameter of the pipe S is the wall thickness of the pipe	105x6 , mm.
D Diameter of the circle described by the hinge elements	185 , mm
a1 The angle of rotation in the hinge	30 , hail.
a2 Angle of rotation in the hinge	30 , hail.
Lmin Transmission length in fully compressed position	2874 , mm
Move Slotted stroke	140 , mm.
L1	1138 , mm
L2	1529 , mm
M Transfer weight	101 , kg
