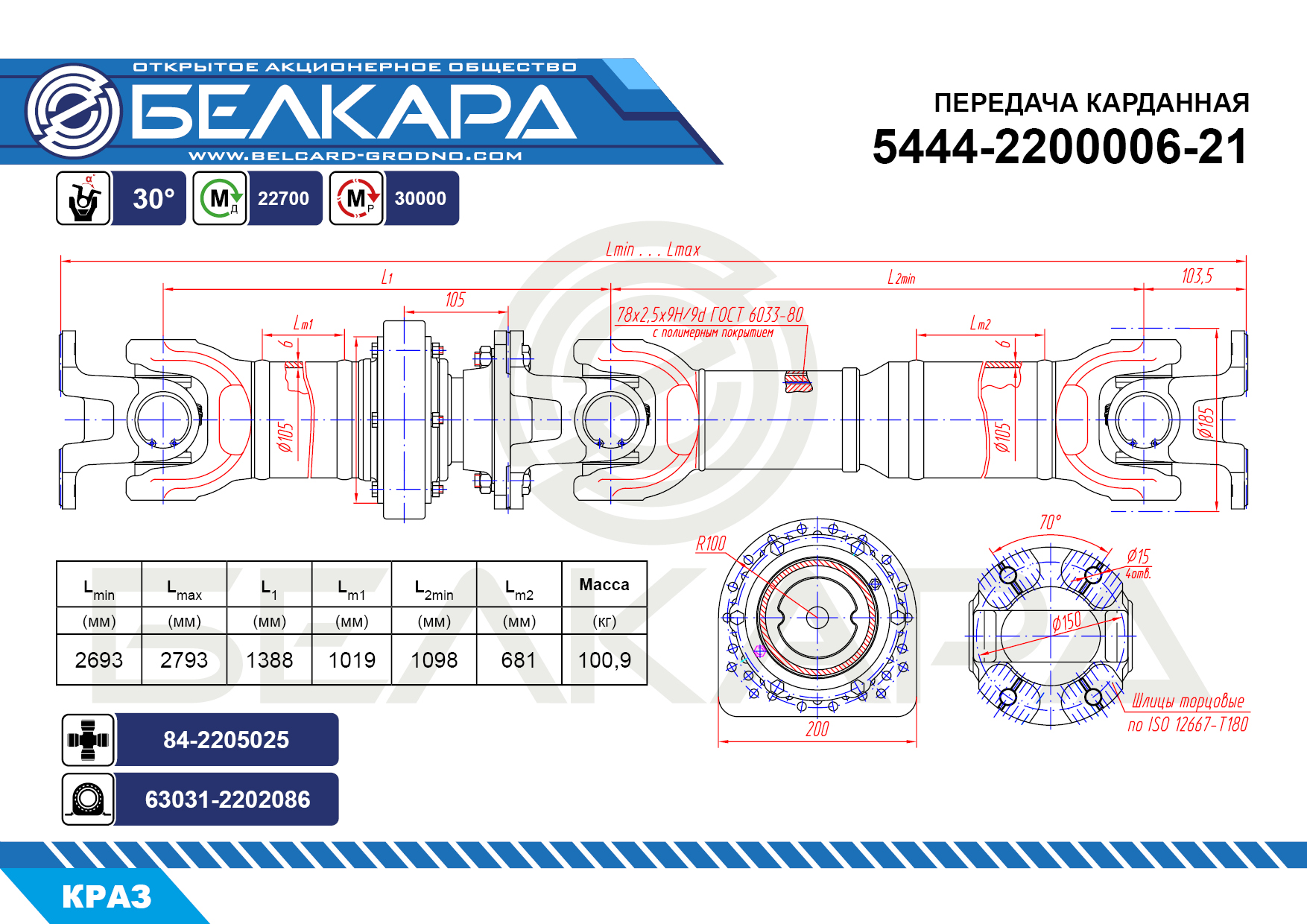

Designation	5444-220006-21
Md Torque without residual deformation	22700 , N*m
Mr Non-destructive torque	30000 , N*m
d x S d is the inner diameter of the pipe S is the wall thickness of the pipe	105х6 , mm.
D Diameter of the circle described by the hinge elements	185 , mm
a1 The angle of rotation in the hinge	30 , hail.
a2 Angle of rotation in the hinge	30 , hail.
Lmin Transmission length in fully compressed position	2693 , mm
Move Slotted stroke	100 , mm.
L1	1388 , mm
L2	1098 , mm
M Transfer weight	100,9 , kg
