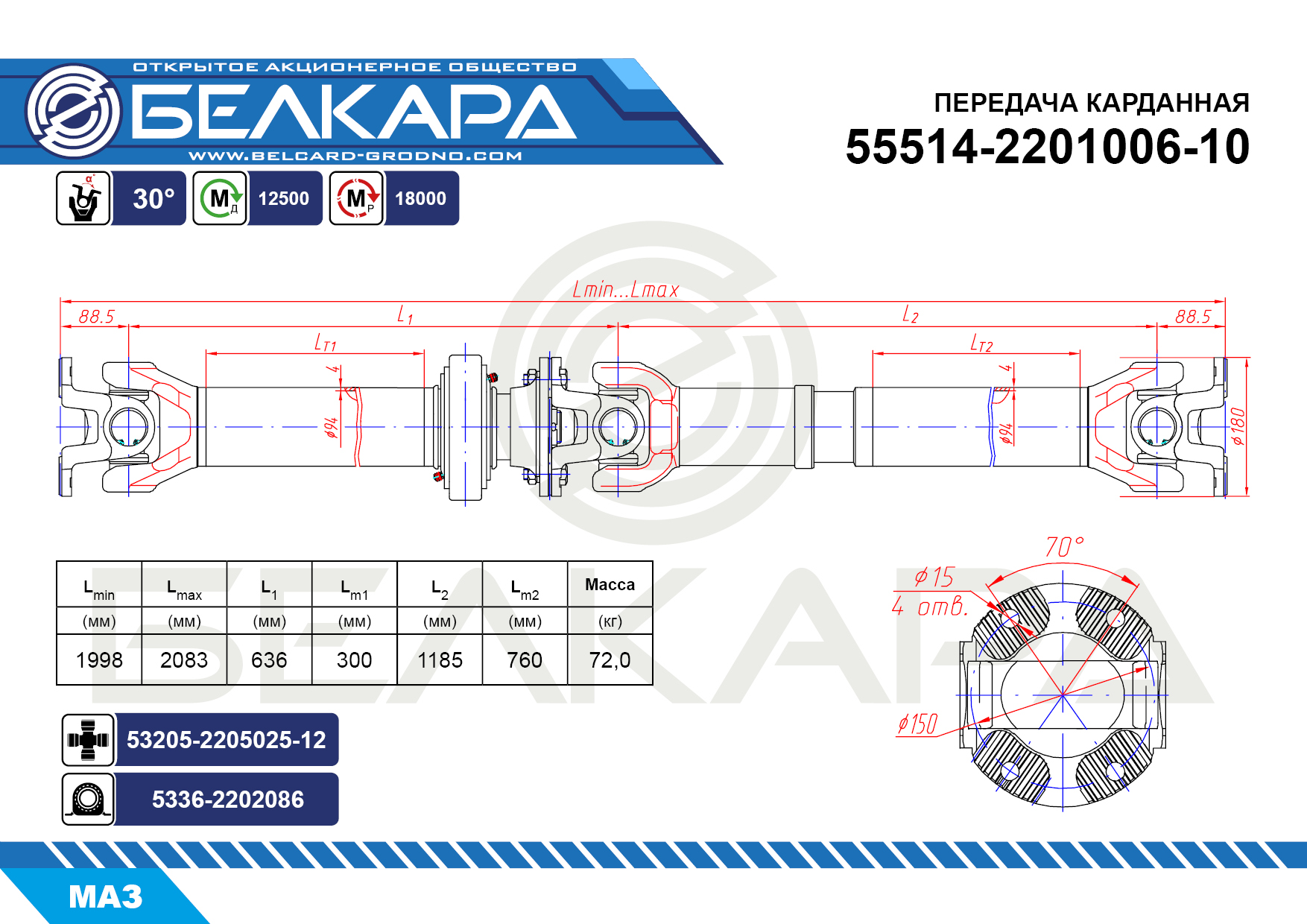

Designation	55514-2201006-10
Md Torque without residual deformation	12500 , N*m
Mr Non-destructive torque	18000 , N*m
d x S d is the inner diameter of the pipe S is the wall thickness of the pipe	94х4 , mm.
D Diameter of the circle described by the hinge elements	180 , mm
a1 The angle of rotation in the hinge	30 , hail.
a2 Angle of rotation in the hinge	30 , hail.
Lmin Transmission length in fully compressed position	1998 , mm
Move Slotted stroke	85 , mm.
L1	636 , mm
L2	1185 , mm
M Transfer weight	72 , kg
