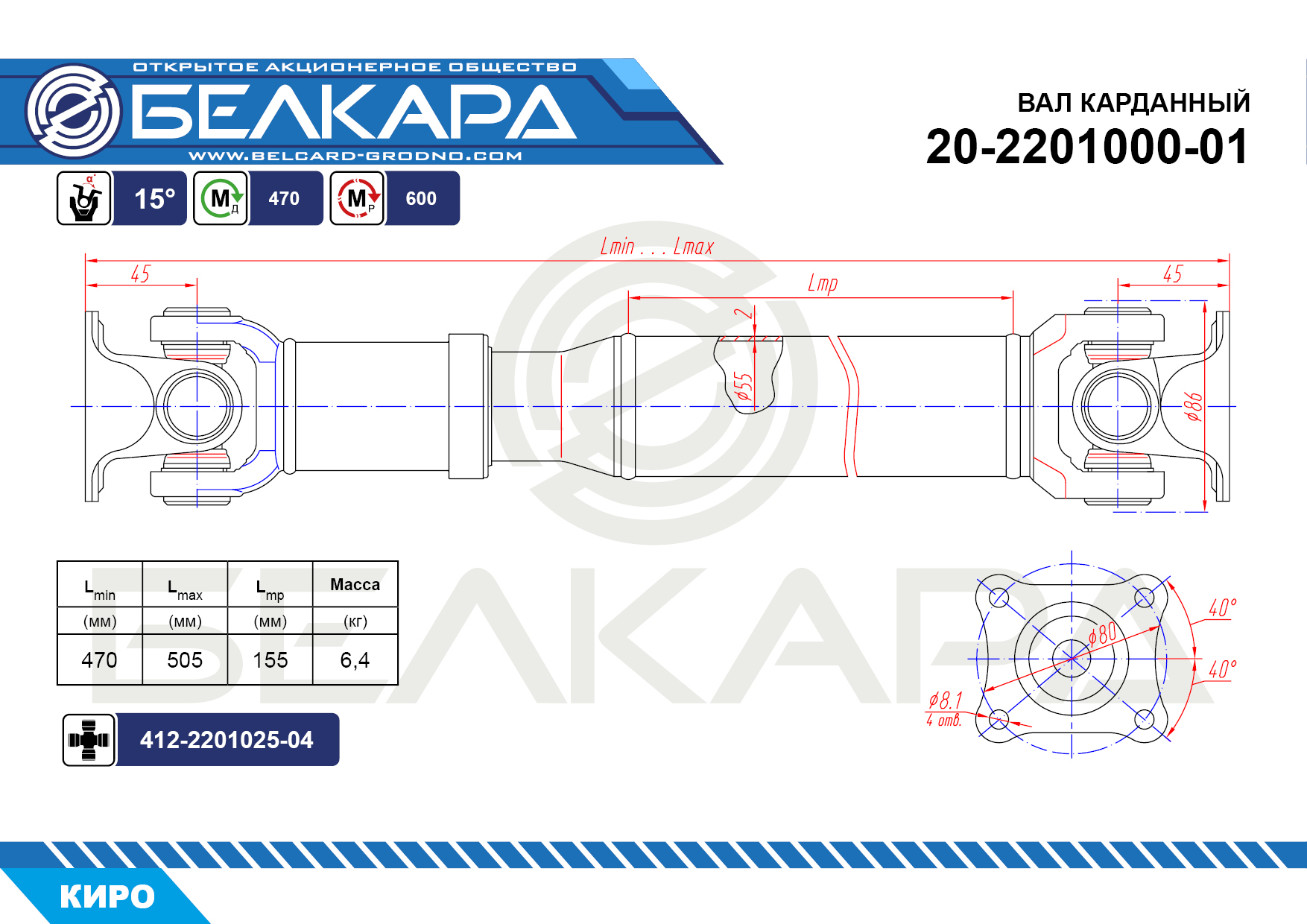

20-2201000-01
| Designation | 20-2201000-01 |
|
Md Torque without residual deformation
| 470 , N*m |
|
Mr Non-destructive torque
| 600 , N*m |
|
D Diameter of the circle described by the hinge elements
| 86 , mm |
|
d x S d is the inner diameter of the pipe \r\n S is the wall thickness of the pipe
| 55х2 , mm. |
|
a1 The angle of rotation in the hinge
| 15 , hail. |
|
a2 The angle of rotation in the hinge
| 15 , hail. |
|
Lmin Shaft length in fully compressed position
| 470 , mm |
|
Move Slotted stroke
| 35 , mm |
|
M Driveshaft weight
| 6,4 , kg. |
