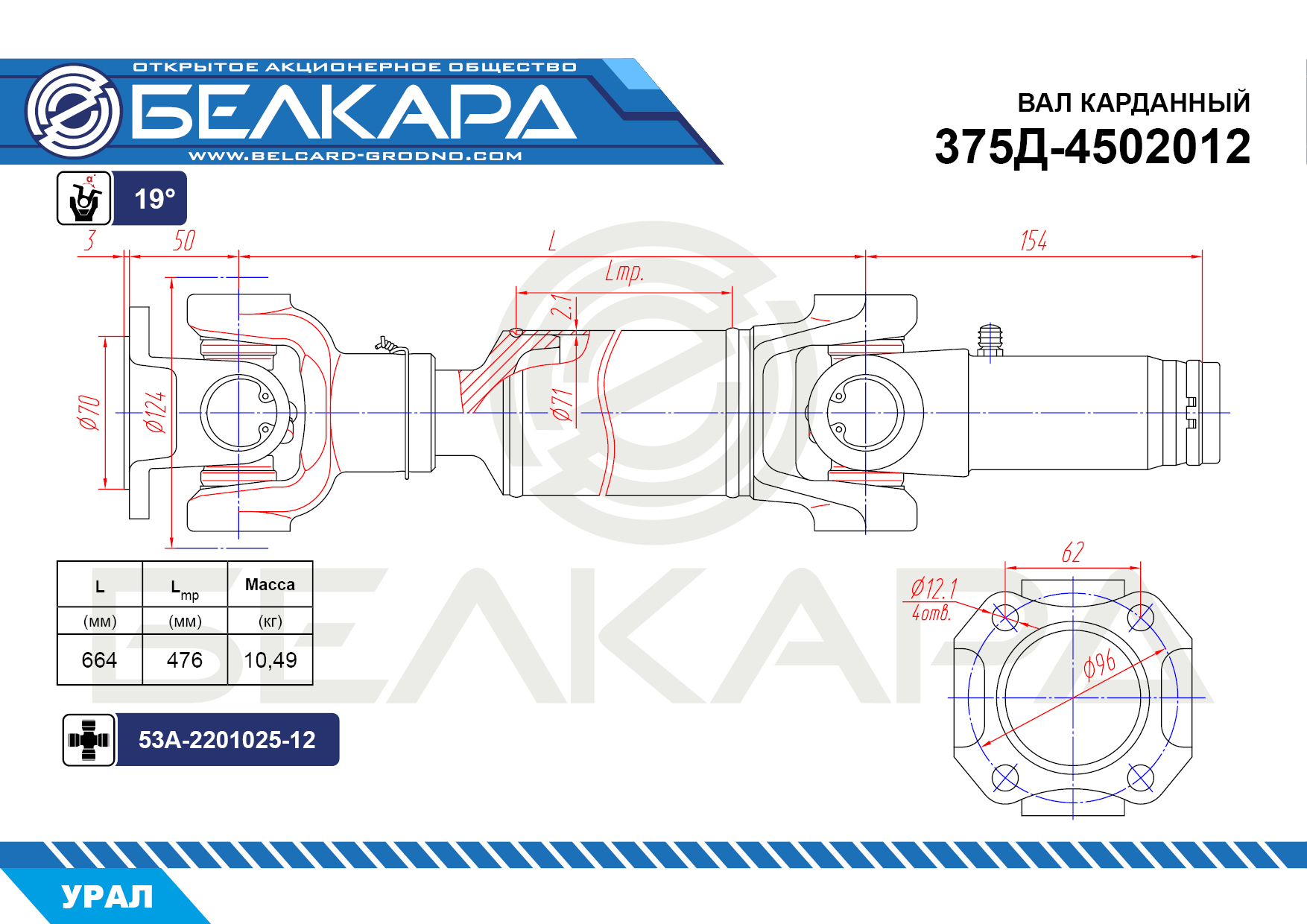

375Д-4502012
| Designation | 375Д-4502012 |
|
D Diameter of the circle described by the hinge elements
| 124 , mm |
|
d x S d is the inner diameter of the pipe \r\n S is the wall thickness of the pipe
| 71x2.1 , mm. |
|
a1 The angle of rotation in the hinge
| 19 , hail. |
|
a2 The angle of rotation in the hinge
| 19 , hail. |
|
L Shaft length
| 664 , mm |
|
M Driveshaft weight
| 10,49 , kg. |
