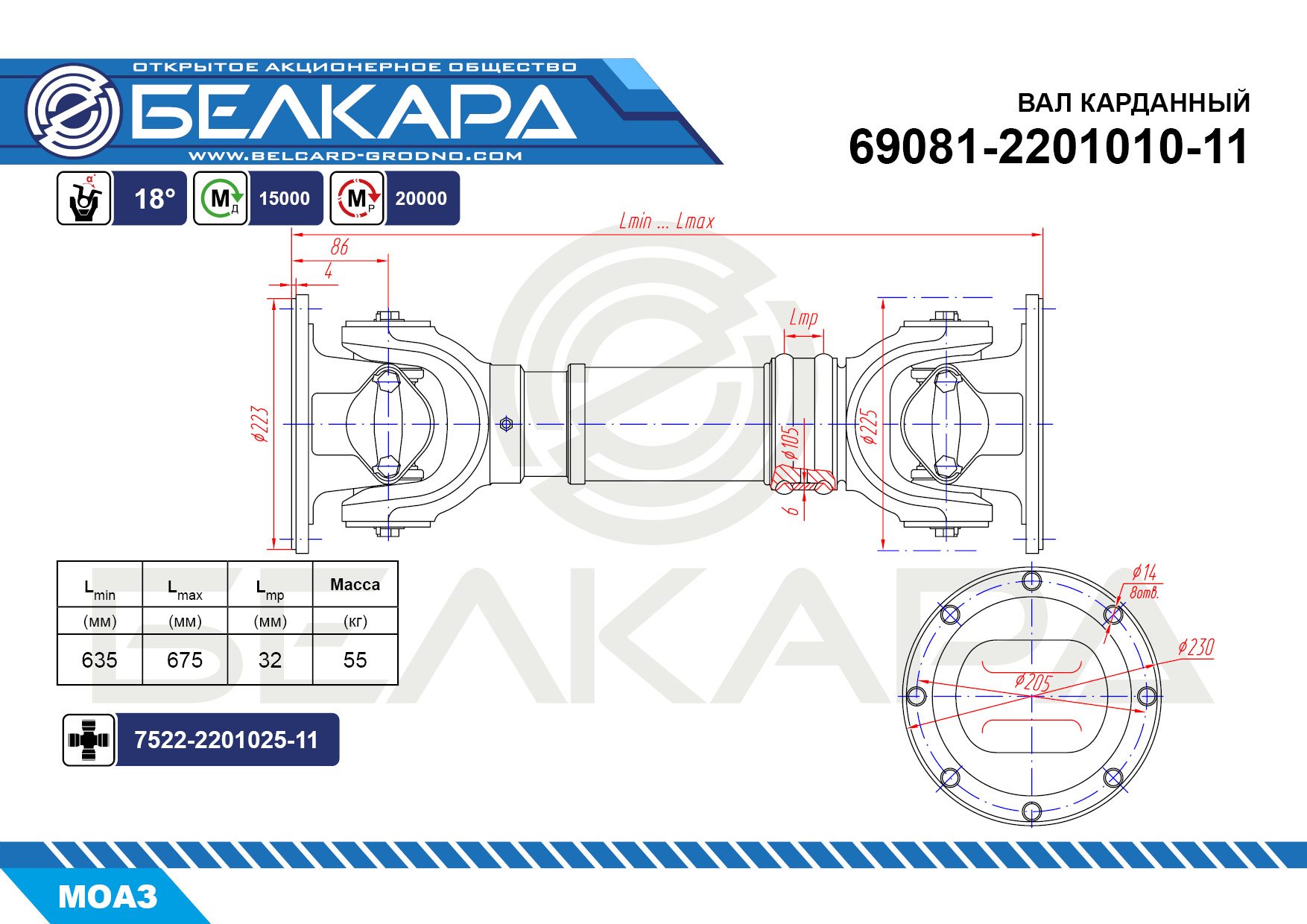

Designation	69081-2201010-11
Md Torque without residual deformation	15000 , N*m
Mr Non-destructive torque	20000 , N*m
D Diameter of the circle described by the hinge elements	225 , mm
d x S d is the inner diameter of the pipe \r\n S is the wall thickness of the pipe	105х6 , mm.
a1 The angle of rotation in the hinge	18 , hail.
a2 The angle of rotation in the hinge	18 , hail.
Lmin Shaft length in fully compressed position	635 , mm
Move Slotted stroke	40 , mm
M Driveshaft weight	55 , kg.
