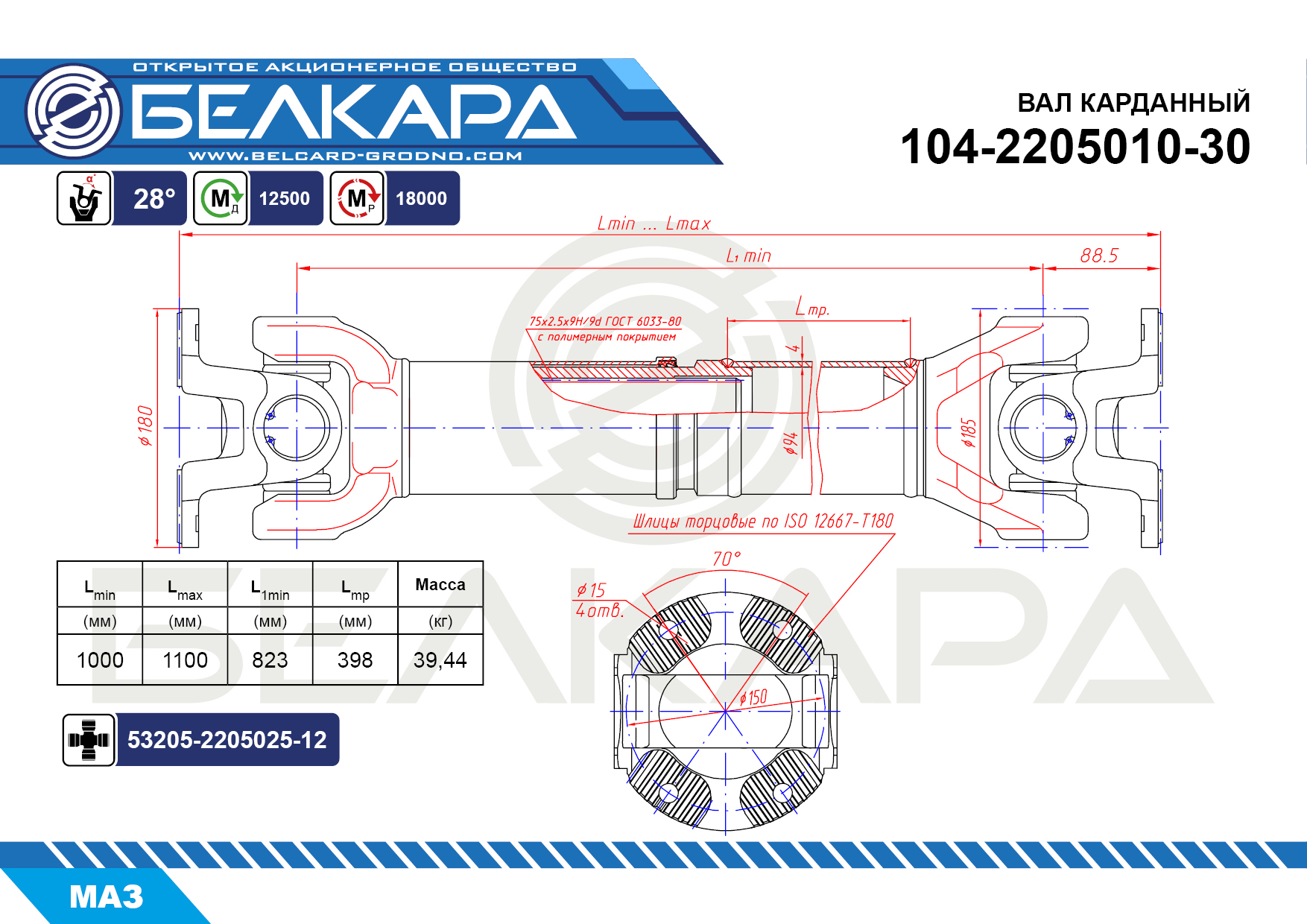

Designation	104-2205010-30
Md Torque without residual deformation	12500 , N*m
Mr Non-destructive torque	18000 , N*m
D Diameter of the circle described by the hinge elements	185 , mm
d x S d is the inner diameter of the pipe \r\n S is the wall thickness of the pipe	94х4 , mm.
a1 The angle of rotation in the hinge	28 , hail.
a2 The angle of rotation in the hinge	28 , hail.
Lmin Shaft length in fully compressed position	1000 , mm
Move Slotted stroke	1100 , mm
M Driveshaft weight	39.44 , kg.
