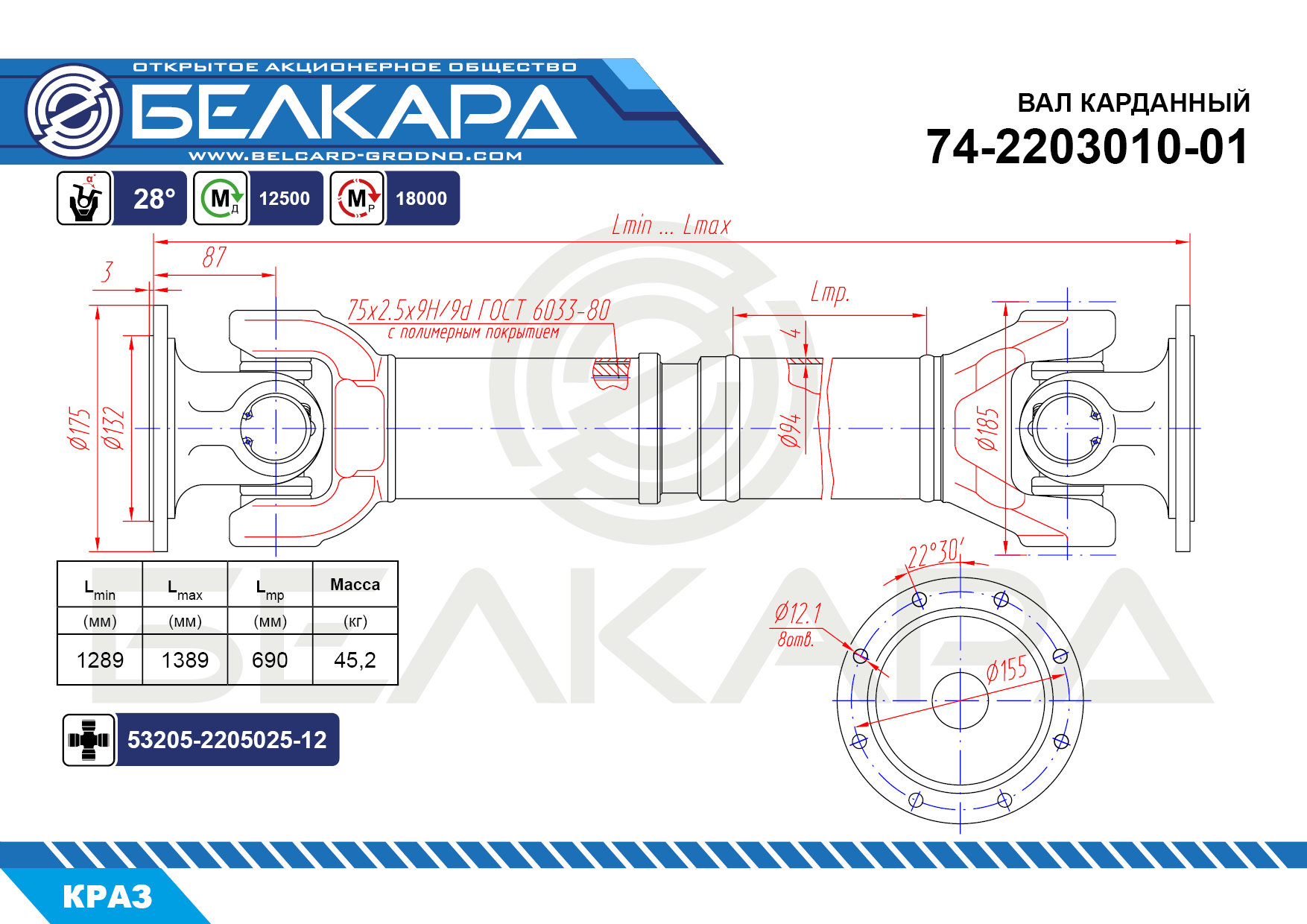

| Designation | 74-2203010-01 |
|
Md Torque without residual deformation
| 12500 , N*m |
|
Mr Non-destructive torque
| 18000 , N*m |
|
D Diameter of the circle described by the hinge elements
| 185 , mm |
|
d x S d is the inner diameter of the pipe \r\n S is the wall thickness of the pipe
| 94х4 , mm. |
|
a1 The angle of rotation in the hinge
| 28 , hail. |
|
a2 The angle of rotation in the hinge
| 28 , hail. |
|
Lmin Shaft length in fully compressed position
| 1289 , mm |
|
Move Slotted stroke
| 100 , mm |
|
M Driveshaft weight
| 45,2 , kg. |
