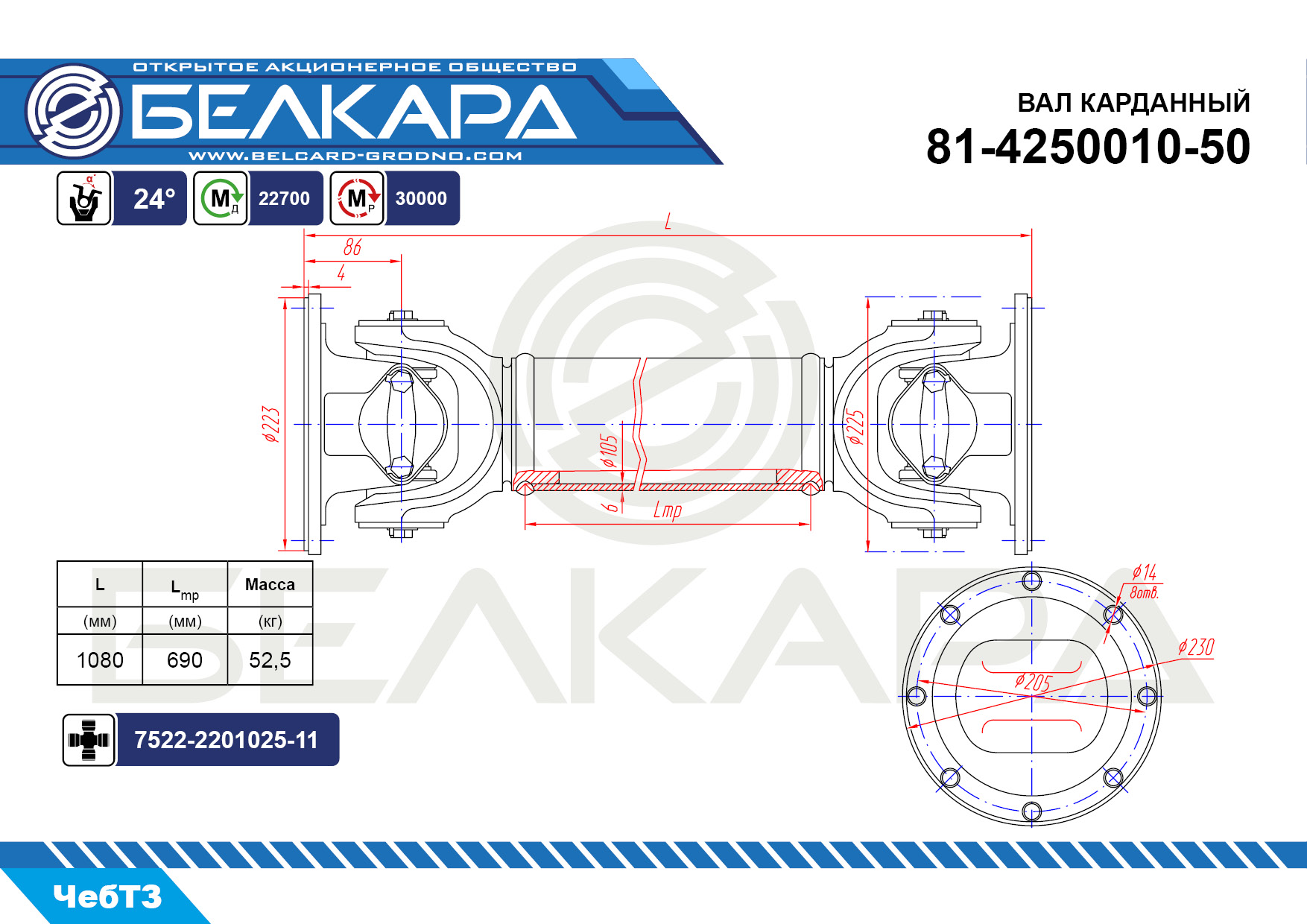

| Designation | 81-4250010-50 |
|
Md Torque without residual deformation
| 22700 , N*m |
|
Mr Non-destructive torque
| 30000 , N*m |
|
D Diameter of the circle described by the hinge elements
| 225 , mm |
|
d x S d is the inner diameter of the pipe \r\n S is the wall thickness of the pipe
| 105x6 , mm. |
|
a1 The angle of rotation in the hinge
| 24 , hail. |
|
a2 The angle of rotation in the hinge
| 24 , hail. |
|
L Shaft length
| 1080 , mm |
|
M Driveshaft weight
| 52,5 , kg. |
