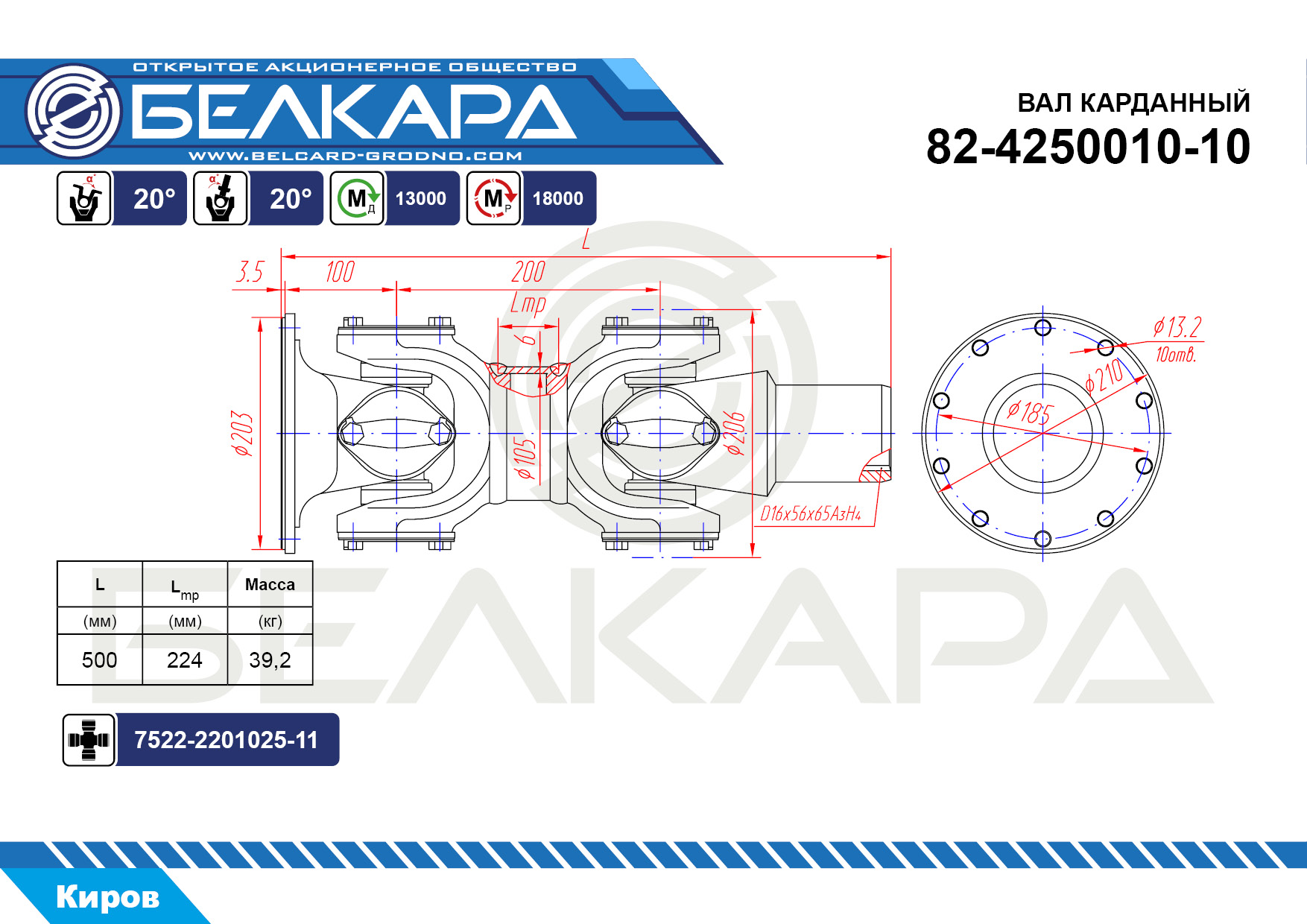

Designation	82-4250010-10
Md Torque without residual deformation	13000 , N*m
Mr Non-destructive torque	18000 , N*m
D Diameter of the circle described by the hinge elements	206 , mm
d x S d is the inner diameter of the pipe \r\n S is the wall thickness of the pipe	105x6 , mm.
a1 The angle of rotation in the hinge	20 , hail.
a2 The angle of rotation in the hinge	20 , hail.
L Shaft length	500 , mm
M Driveshaft weight	39,2 , kg.
