Driveshafts

Array
(
    [ID] => 85
    [~ID] => 85
    [CODE] => kardannyy-val
    [~CODE] => kardannyy-val
    [LEFT_MARGIN] => 3
    [~LEFT_MARGIN] => 3
    [RIGHT_MARGIN] => 4
    [~RIGHT_MARGIN] => 4
    [DESCRIPTION] =>
    [~DESCRIPTION] =>
    [DESCRIPTION_TYPE] => text
    [~DESCRIPTION_TYPE] => text
)




  • Md
    N*m
    From
    To
    470
    8103
    15735
    23368
    31000
  • a1
    hail.
    From
    To
    7
    19
    31
    43
    55
  • a2
    hail.
    From
    To
    7
    19
    31
    43
    55
  • L
    mm
    From
    To
    158
    753
    1348
    1942
    2537
  • Lmin
    mm
    From
    To
    53
    583
    1113
    1643
    2173
  • Move
    mm
    From
    To
    16
    287
    558
    829
    1100
  • M
    kg.
    From
    To
    3
    29
    54
    80
    105
  •

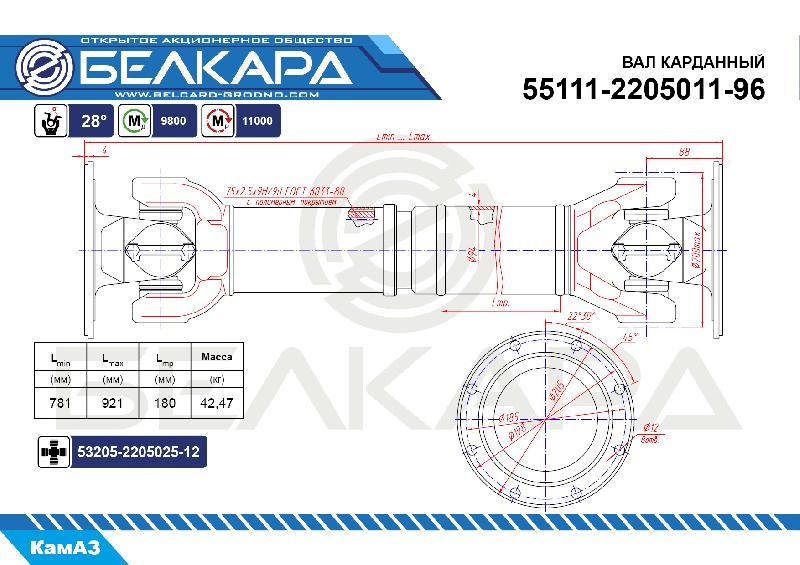

55111-2205011-96
55111-2205011-96
Shaft length in fully compressed position, mm 781 Driveshaft weight, kg. 42,47
55111-2205011-11
55111-2205011-11
Shaft length in fully compressed position, mm 821 Driveshaft weight, kg. 42,85

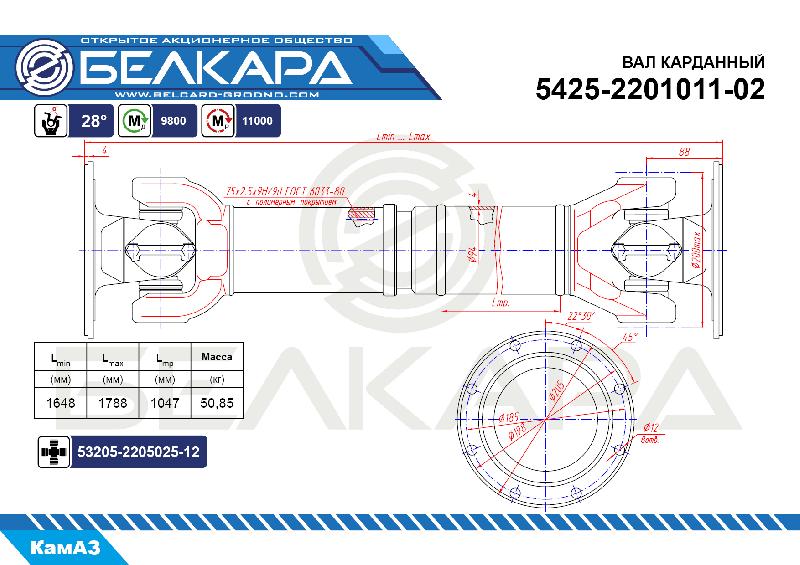

5425-2201011-02
5425-2201011-02
Shaft length in fully compressed position, mm 1648 Driveshaft weight, kg. 50,85
54112-2205011-02
54112-2205011-02
Shaft length in fully compressed position, mm 646 Driveshaft weight, kg. 41,16
5410-2205011-04
5410-2205011-04
Shaft length in fully compressed position, mm 638 Driveshaft weight, kg. 29,6

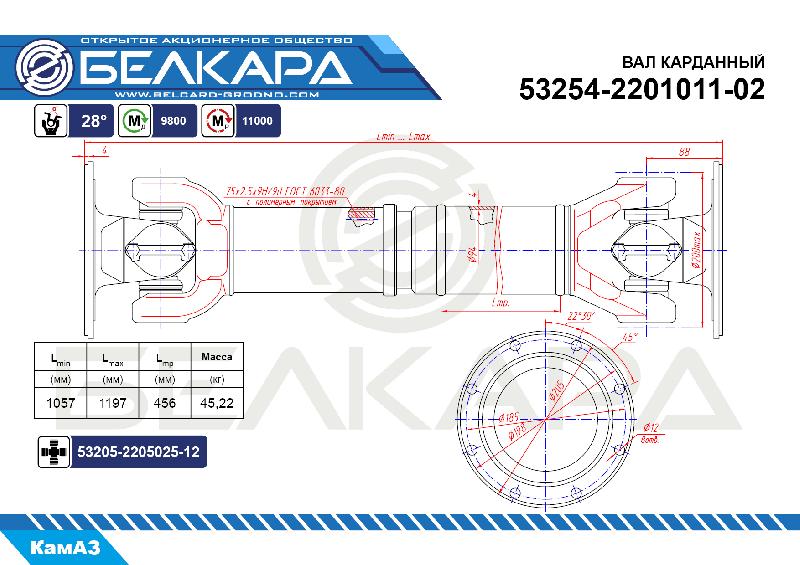

53254-2201011-02
53254-2201011-02
Shaft length in fully compressed position, mm 1057 Driveshaft weight, kg. 45,22

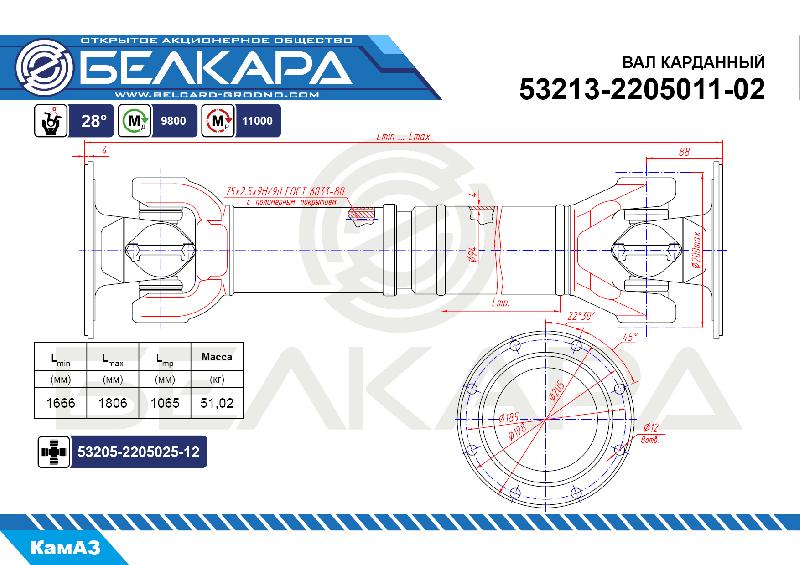

53213-2205011-02
53213-2205011-02
Shaft length in fully compressed position, mm 1666 Driveshaft weight, kg. 51,02
53212-2205011-95
53212-2205011-95
Shaft length in fully compressed position, mm 1377 Driveshaft weight, kg. 48,19
53212-2205011-12
53212-2205011-12
Shaft length in fully compressed position, mm 1490 Driveshaft weight, kg. 49,32

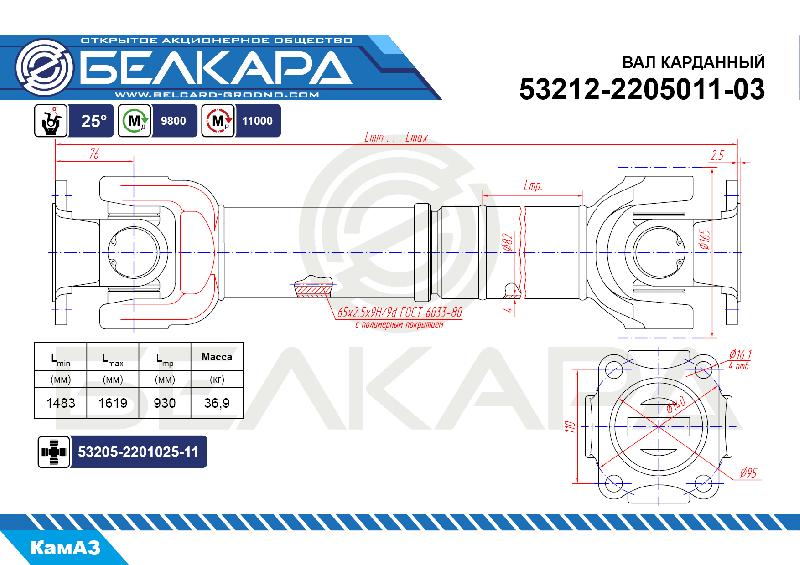

53212-2205011-03
53212-2205011-03
Shaft length in fully compressed position, mm 1483 Driveshaft weight, kg. 36,9

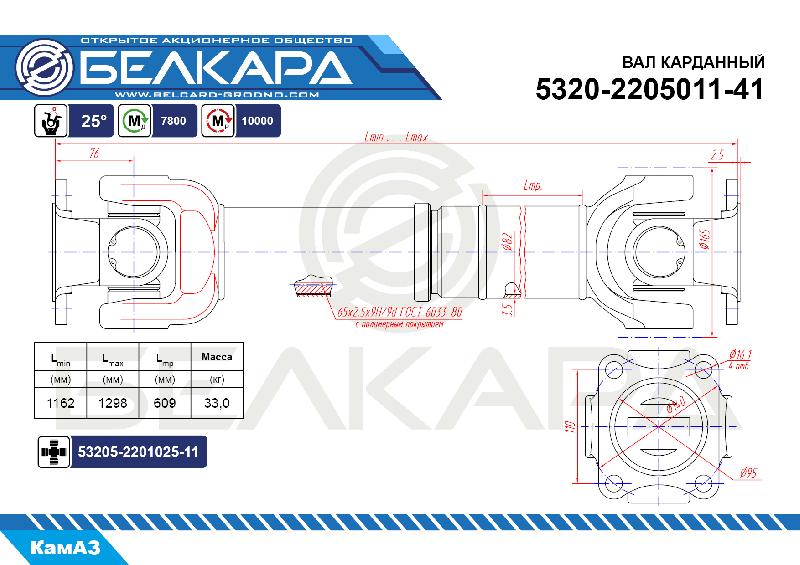

5320-2205011-41
5320-2205011-41
Shaft length in fully compressed position, mm 1162 Driveshaft weight, kg. 33
5320-2205011-34
5320-2205011-34
Shaft length in fully compressed position, mm 990 Driveshaft weight, kg. 44,49

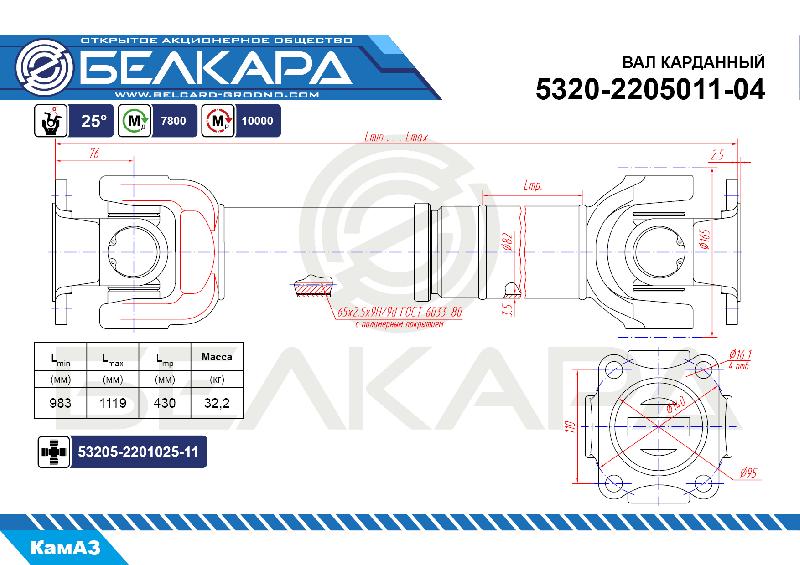

5320-2205011-04
5320-2205011-04
Shaft length in fully compressed position, mm 983 Driveshaft weight, kg. 32,2

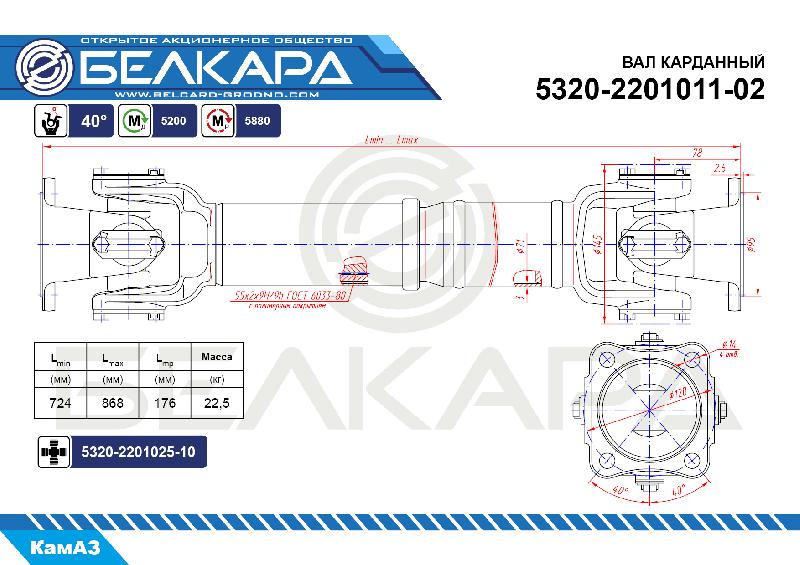

5320-2201011-02
5320-2201011-02
Shaft length in fully compressed position, mm 724 Driveshaft weight, kg. 22,5
4925-2201011-01
4925-2201011-01
Shaft length in fully compressed position, mm 948 Driveshaft weight, kg. 44,08

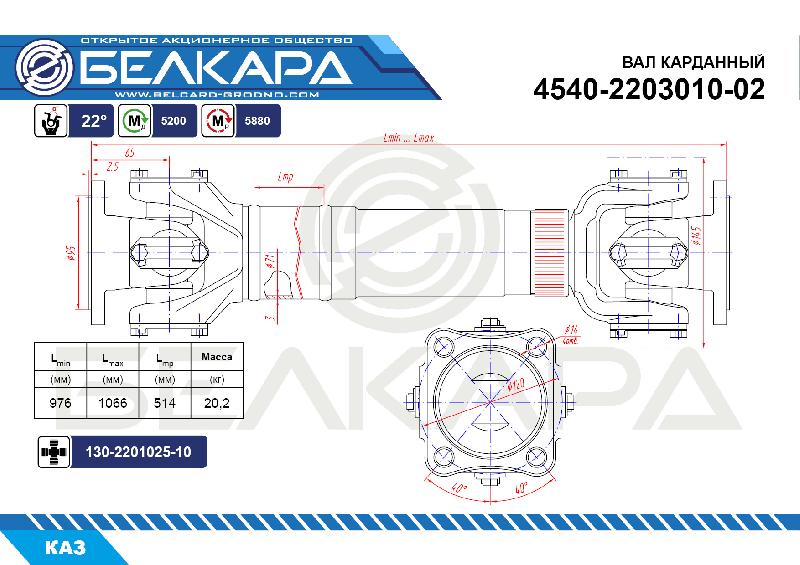

4540-2203010-02
4540-2203010-02
Shaft length in fully compressed position, mm 976 Driveshaft weight, kg. 20,2
4540-2201010-02
4540-2201010-02
Shaft length in fully compressed position, mm 1326 Driveshaft weight, kg. 22,1

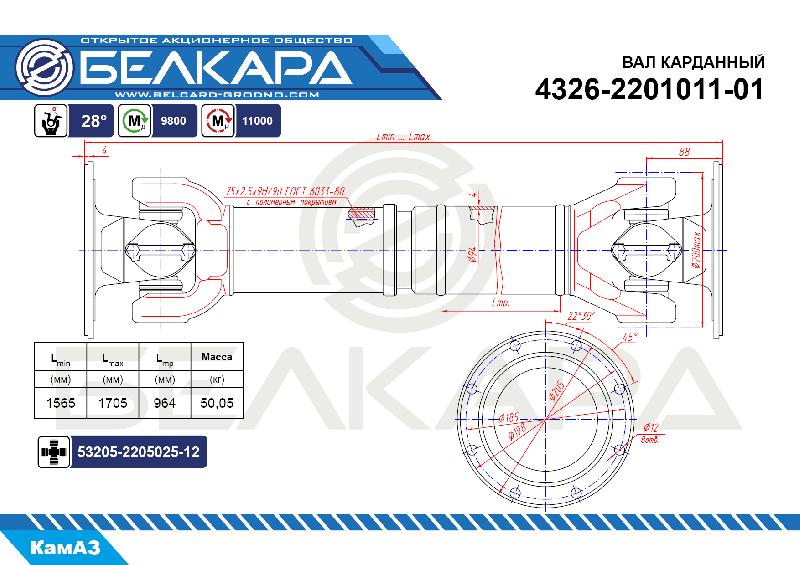

4326-2201011-01
4326-2201011-01
Shaft length in fully compressed position, mm 1565 Driveshaft weight, kg. 50,05
4325-2201011-01
4325-2201011-01
Shaft length in fully compressed position, mm 952 Driveshaft weight, kg. 31,9

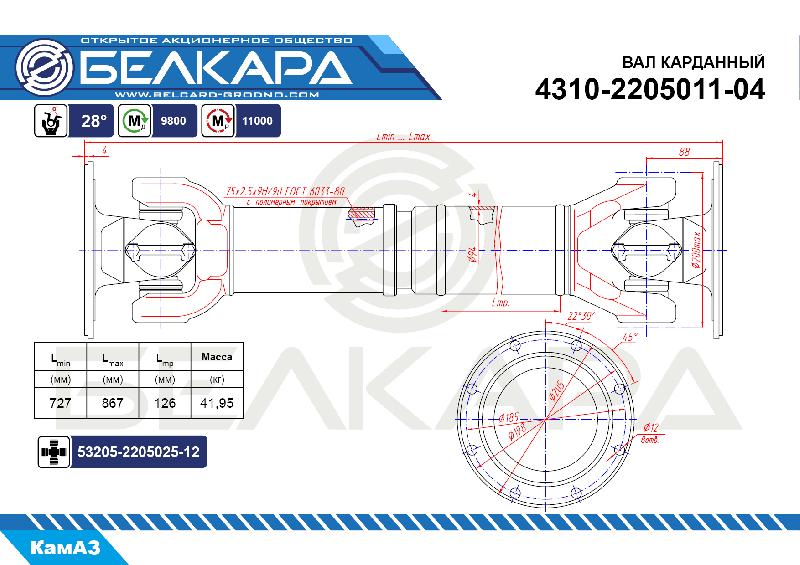

4310-2205011-04
4310-2205011-04
Shaft length in fully compressed position, mm 727 Driveshaft weight, kg. 41,95
