  • Md
    N*m
    From
    To
    470
    8103
    15735
    23368
    31000
  • a1
    hail.
    From
    To
    7
    19
    31
    43
    55
  • a2
    hail.
    From
    To
    7
    19
    31
    43
    55
  • L
    mm
    From
    To
    158
    753
    1348
    1942
    2537
  • Lmin
    mm
    From
    To
    53
    583
    1113
    1643
    2173
  • Move
    mm
    From
    To
    16
    287
    558
    829
    1100
  • M
    kg.
    From
    To
    3
    29
    54
    80
    105
  •
4310-2203011-01
4310-2203011-01
Shaft length in fully compressed position, mm 1136 Driveshaft weight, kg. 24,8

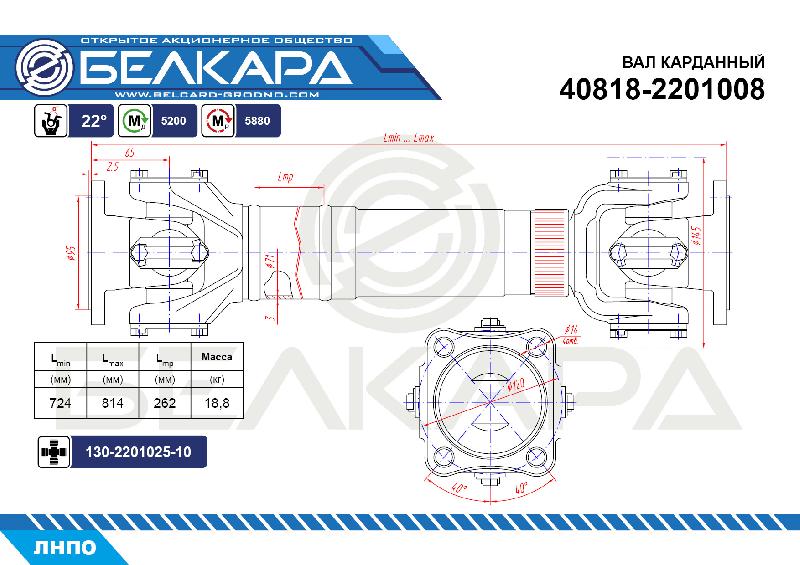

40818-2201008
40818-2201008
Shaft length in fully compressed position, mm 724 Driveshaft weight, kg. 18,8

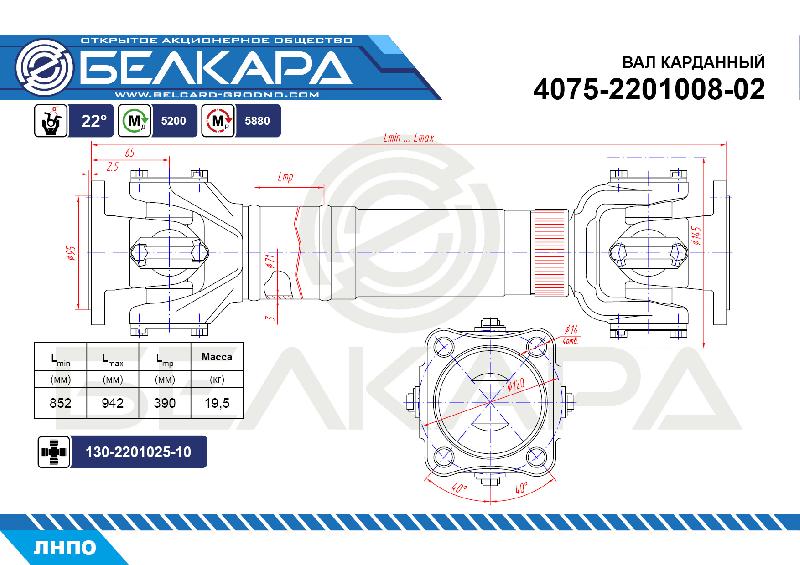

4075-2201008-02
4075-2201008-02
Shaft length in fully compressed position, mm 852 Driveshaft weight, kg. 19,5
4065-2201008-02
4065-2201008-02
Shaft length in fully compressed position, mm 931 Driveshaft weight, kg. 20

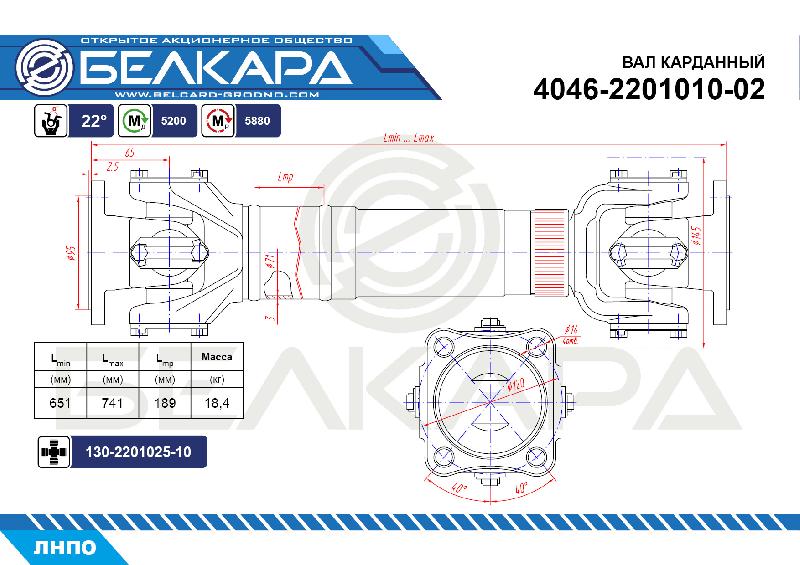

4046-2201010-02
4046-2201010-02
Shaft length in fully compressed position, mm 651 Driveshaft weight, kg. 18,4
4016-2201011
4016-2201011
Shaft length in fully compressed position, mm 573 Driveshaft weight, kg. 18

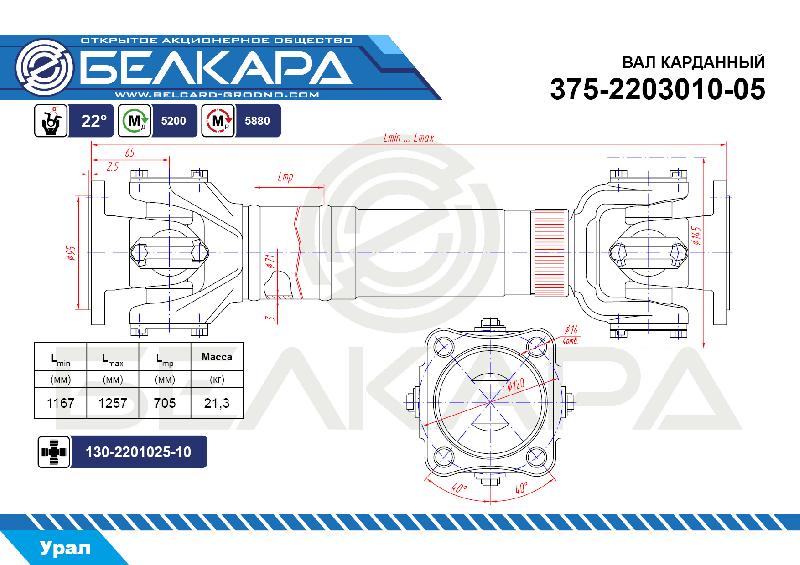

375-2203010-05
375-2203010-05
Shaft length in fully compressed position, mm 1167 Driveshaft weight, kg. 21.3
157К-2201011-03
157К-2201011-03
Shaft length in fully compressed position, mm 659 Driveshaft weight, kg. 22,2

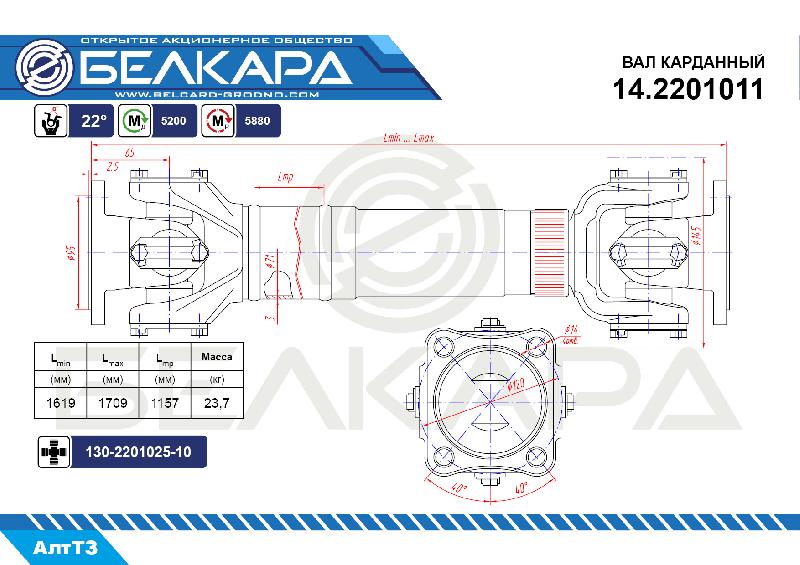

14.2201011
14.2201011
Shaft length in fully compressed position, mm 1619 Driveshaft weight, kg. 23,7

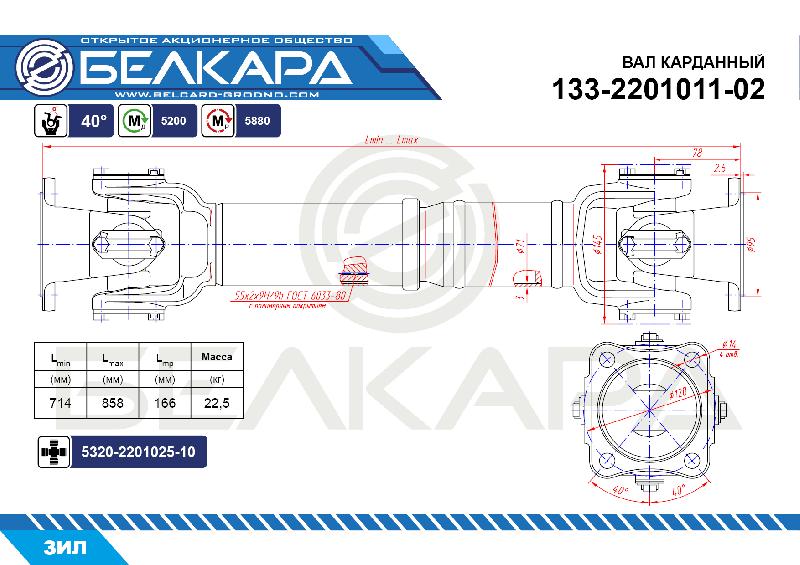

133-2201011-02
133-2201011-02
Shaft length in fully compressed position, mm 714 Driveshaft weight, kg. 22,5

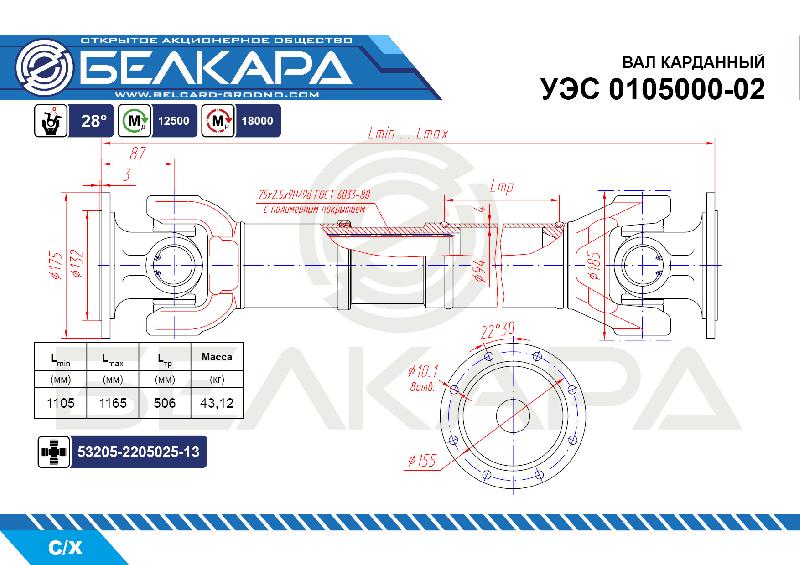

УЭС 0105000-02
УЭС 0105000-02
Shaft length in fully compressed position, mm 1105 Driveshaft weight, kg. 43,12
ТДТ-55-2202010-16
ТДТ-55-2202010-16
Shaft length in fully compressed position, mm 1123 Driveshaft weight, kg. 15,69

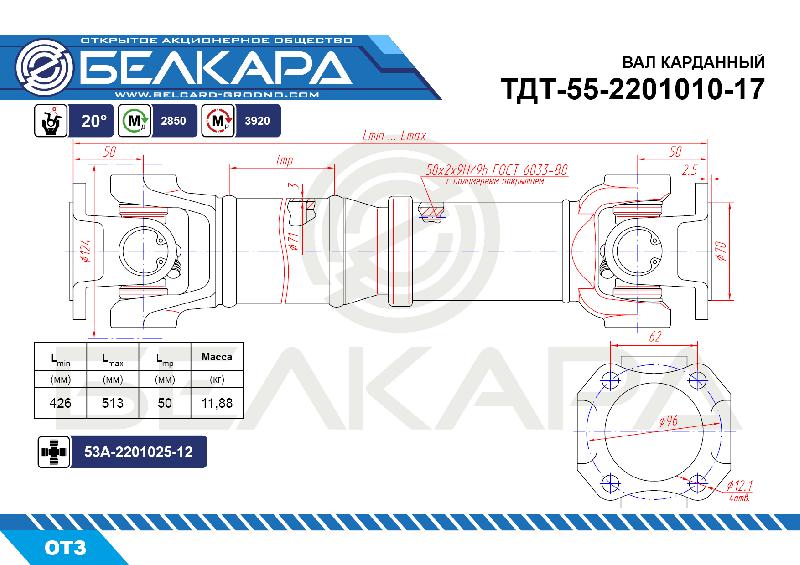

ТДТ-55-2201010-17
ТДТ-55-2201010-17
Shaft length in fully compressed position, mm 426 Driveshaft weight, kg. 11,88
ТДТ-55-2201010-16
ТДТ-55-2201010-16
Shaft length in fully compressed position, mm 720 Driveshaft weight, kg. 13,48
ТДТ-55-2201010-15
ТДТ-55-2201010-15
Shaft length in fully compressed position, mm 970 Driveshaft weight, kg. 14,85

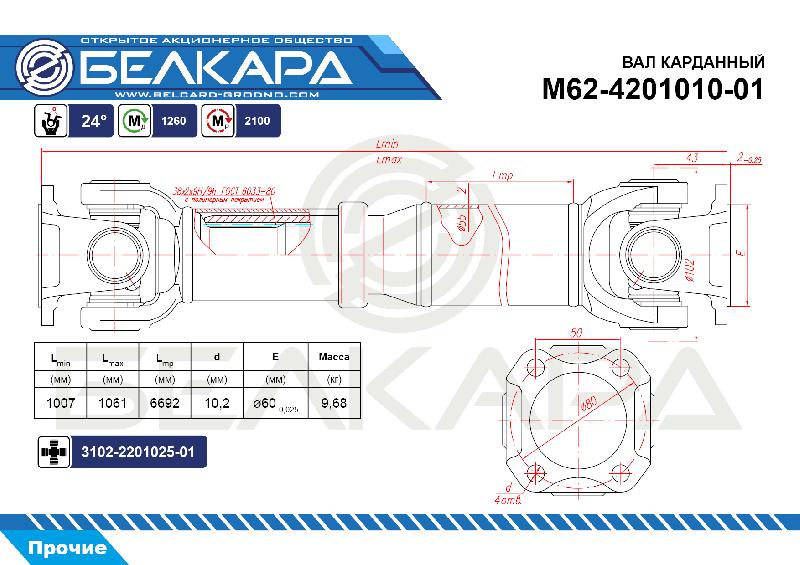

М62-4201010-01
М62-4201010-01
Shaft length in fully compressed position, mm 1007 Driveshaft weight, kg. 9,68

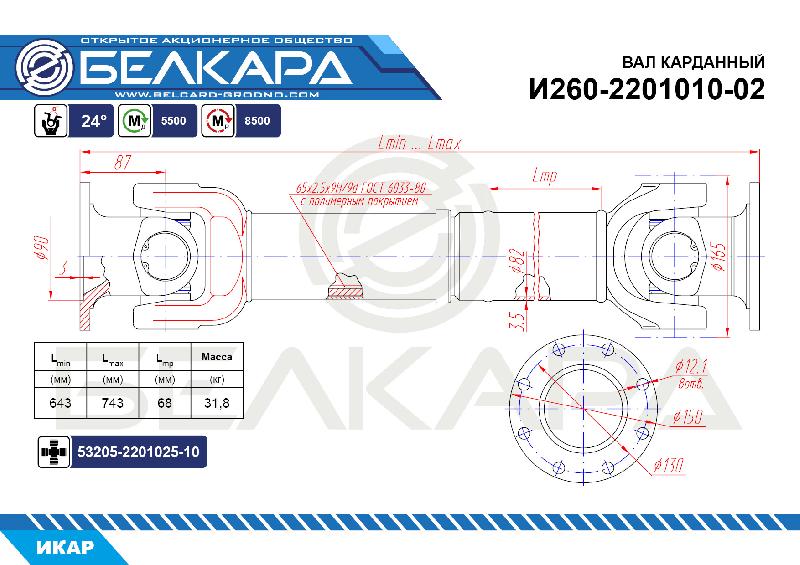

И260-2201010-02
И260-2201010-02
Shaft length in fully compressed position, mm 670 Driveshaft weight, kg. 32

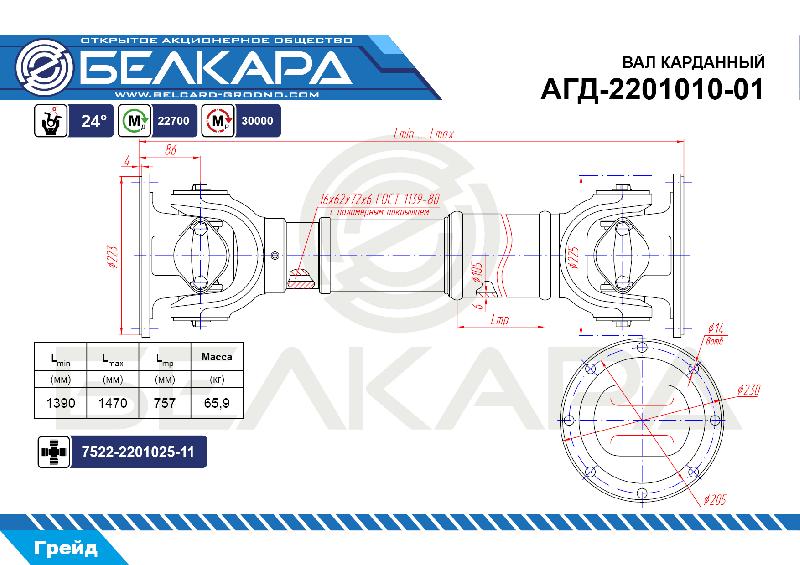

АГД-2201010-01
АГД-2201010-01
Shaft length in fully compressed position, mm 1390 Driveshaft weight, kg. 65,9

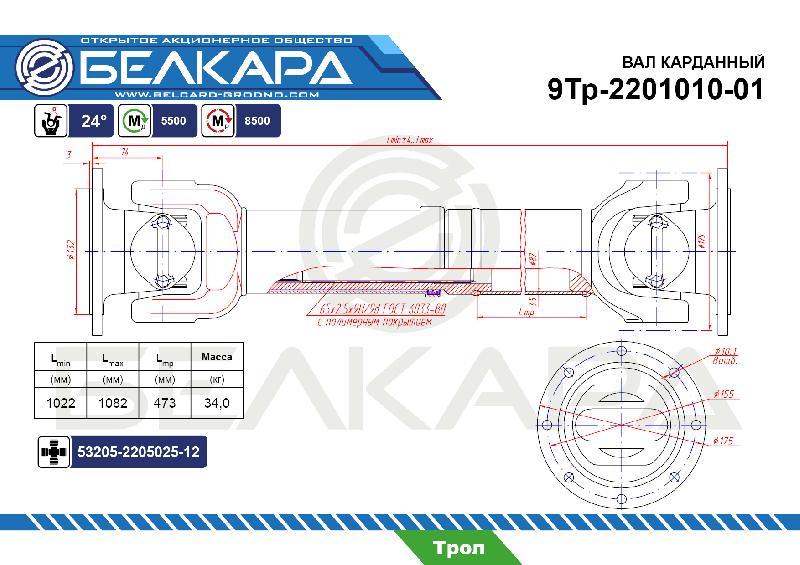

9Тр-2201010-01
9Тр-2201010-01
Shaft length in fully compressed position, mm 1022 Driveshaft weight, kg. 34

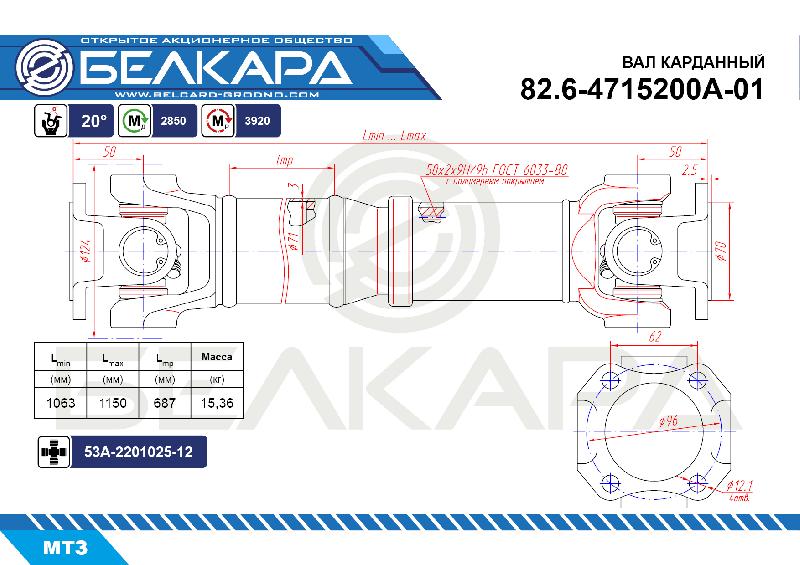

82.6-4715200А-01
82.6-4715200А-01
Shaft length in fully compressed position, mm 1063 Driveshaft weight, kg. 15,36
