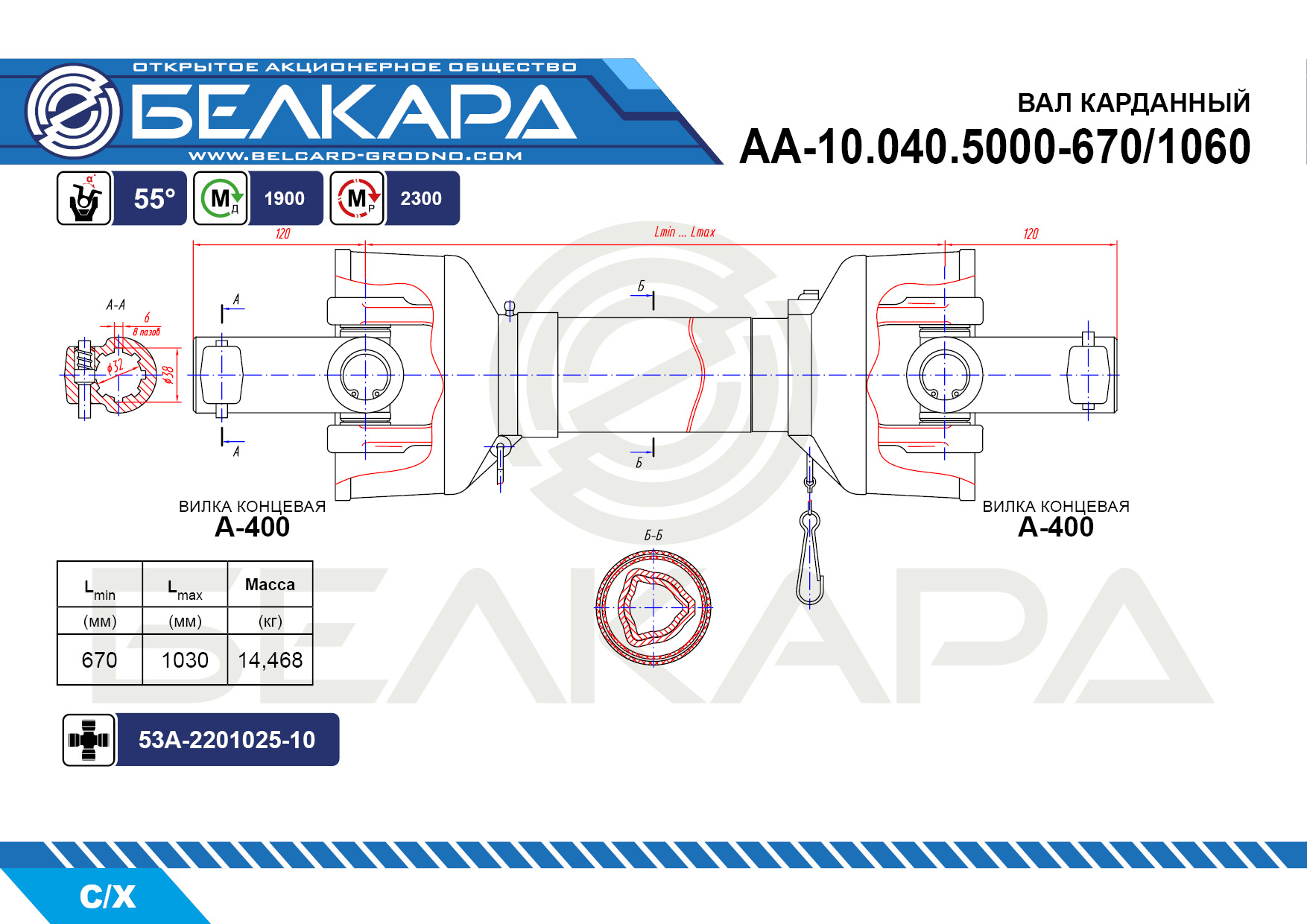

Designation | АА-10.040.5000-670/1060 |
|
Md Torque without residual deformation
| 1900 , N*m |
|
Mr Non-destructive torque
| 2300 , N*m |
|
a1 The angle of rotation in the hinge
| 55 , hail. |
|
a2 The angle of rotation in the hinge
| 55 , hail. |
|
Lmin Shaft length in fully compressed position
| 670 , mm |
|
Move Slotted stroke
| 360 , mm |
|
M Driveshaft weight
| 14,468 , kg. |
