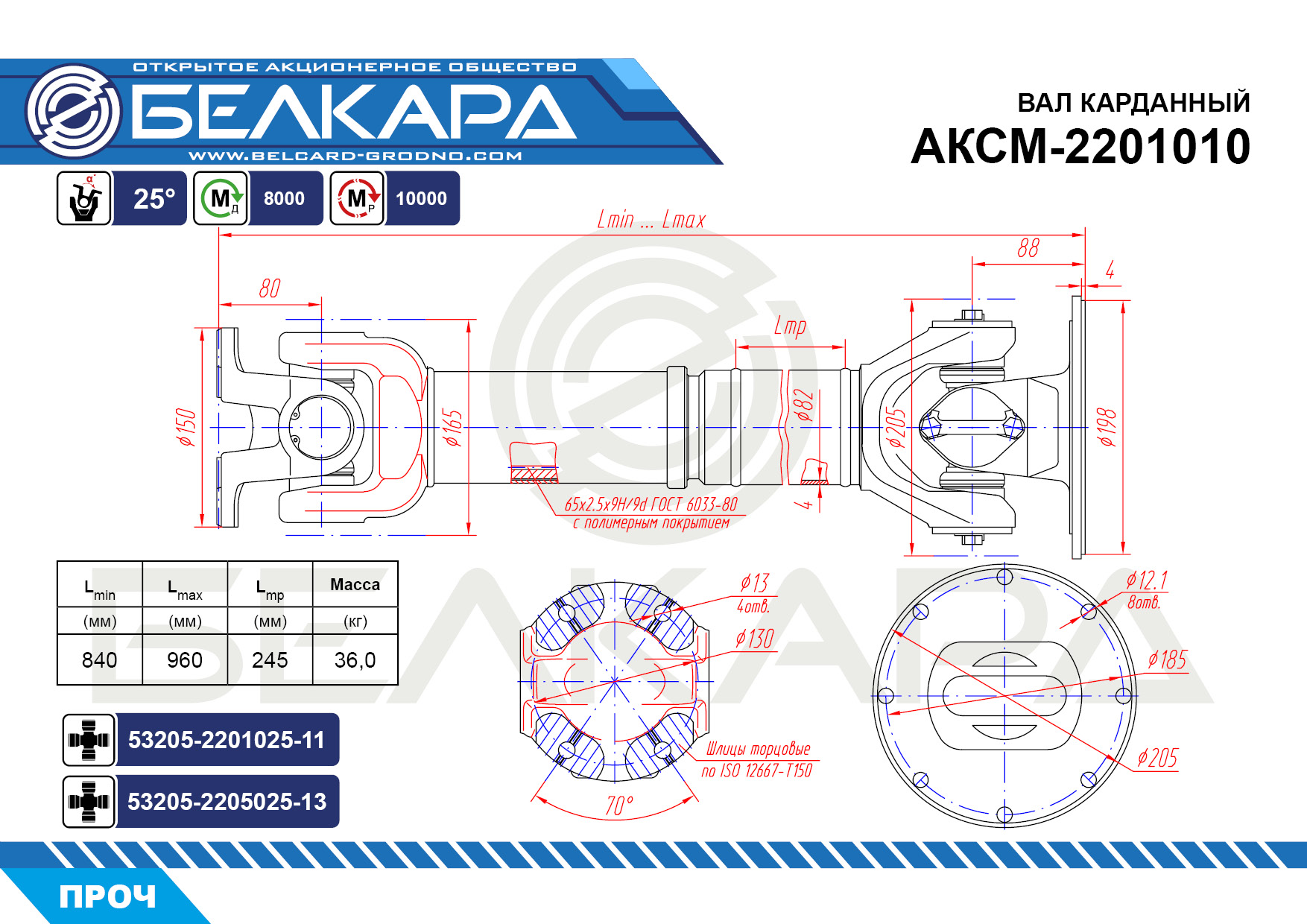

Designation	АКСМ-2201010
Md Torque without residual deformation	8000 , N*m
Mr Non-destructive torque	10000 , N*m
D Diameter of the circle described by the hinge elements	205 , mm
d x S d is the inner diameter of the pipe \r\n S is the wall thickness of the pipe	82х4 , mm.
a1 The angle of rotation in the hinge	25 , hail.
a2 The angle of rotation in the hinge	25 , hail.
Lmin Shaft length in fully compressed position	840 , mm
Move Slotted stroke	120 , mm
M Driveshaft weight	36 , kg.
