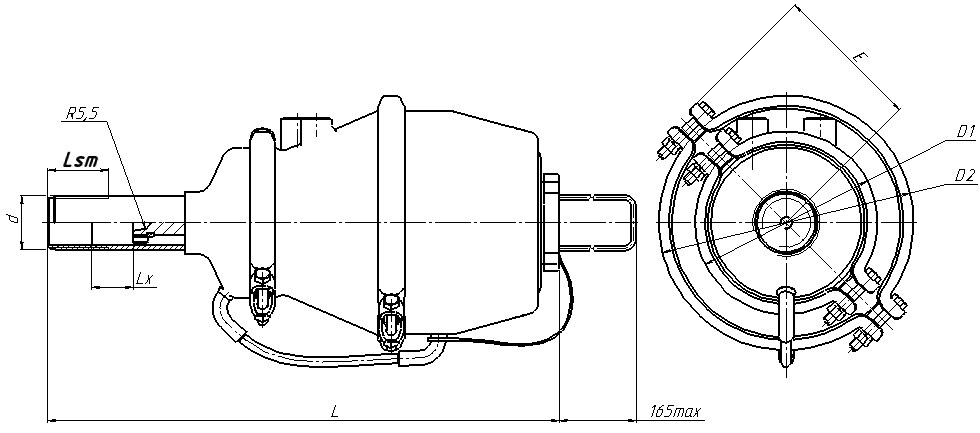

Type Type of brake chamber	12/20
D1	146 , mm.
D2	208 , mm
E	122 , mm
L Size L	422 , mm
Lsm	50 , mm
d Thread	1 ¾-12UNS-2A , mm.
The force on the rod from the power part at 0.6 MPa The force on the rod at a stroke of 20mm	4000 , N, at least
The force on the rod from the energy accumulator The force on the rod at a stroke of 20 mm	7500 , N, at least
Stroke of the stem	50 , mm
Operating pressure	от 0.6 до 0.8 включительно , MPa
BRU blocking pressure	0.65 , MPa
Camera weight Mass	11 , kg
